A sleeve affects reach, rotation, lift, garment balance, shoulder position, armhole comfort, cuff placement, layering, and the intended silhouette. A note such as ergonomic sleeve does not define armhole shape, shoulder slope, sleeve pitch, bicep ease, elbow shape, underarm gusset, seam position, cuff opening, material stretch, grade, or approved movement result. Small pattern or construction changes can make a garment ride up, pull across the back, twist at the sleeve, restrict reach, expose the wrist, or create excess bulk.
A controlled sleeve specification connects product use and wearer movement to the body and sleeve pattern, armhole, ease, materials, articulated panels, gussets, cuffs, seams, fit review, tests, approved sample, and bulk controls. ZM Exports documents garment patterns, construction details, samples, and quality checkpoints within made-to-spec apparel development. Actual patterns, dimensions, materials, tests, minimums, costs, lead times, and results remain project-specific and require written approval.
Key takeaways
- Define the wearer, layers, activity, arm positions, range of motion, silhouette, and cuff requirement before pattern approval.
- Control shoulder, armhole, sleeve pitch, bicep, elbow, wrist, length, ease, seam positions, gussets, and grade rules from stable references.
- Approve shell, lining, insulation, reinforcement, stretch panels, cuffs, closures, thread, and seam finish as one represented assembly.
- Review reach, lift, rotation, bend, comfort, garment ride-up, cuff position, seam behavior, and appearance on a physical sample.
- Release represented patterns, materials, construction, fit standard, evidence, accepted alternatives, and first-piece checks together.
1. Define sleeve use and the approval decision
Identify the style, wearer, fit, size range, garment layer, activity, underlayers, carried equipment, care route, destination, and development stage. State which movements matter: forward reach, overhead reach, driving, lifting, pole use, cycling, running, kneeling, carrying, or another buyer-approved action. Describe whether the sleeve is close, regular, relaxed, articulated, dropped-shoulder, raglan, set-in, gusseted, layered, or another approved route.
List what the sample must prove: dressing, shoulder balance, armhole ease, reach, lift, rotation, bend, cuff position, layer compatibility, pocket access, closure operation, comfort, abrasion, silhouette, and recovery after wear or care. Separate mobility intent from any performance claim that requires a named method and evidence.
- Product context
- Style, wearer, fit, size range, activity, layers, equipment, care, destination, and stage are identified.
- Movement map
- Reach, lift, rotation, bend, carrying, driving, sport, or field actions are explicit.
- Approval decisions
- Ease, coverage, comfort, appearance, access, cuff position, recovery, and evidence are listed.
2. Map the complete sleeve and armhole system
Show front, back, side, inside, relaxed, raised-arm, bent-arm, and closure views as applicable. Give stable codes to shoulder seam, armhole, sleeve head, front and back sleeve, underarm seam, elbow, articulated panel, gusset, cuff, placket, opening, facing, lining, insulation, reinforcement, binding, closure, and other style-specific parts. Use the same codes in patterns, bill of materials, construction notes, sample comments, and inspection records.
Map how the sleeve meets the shoulder, body side seam, armhole, neck, collar, lining, insulation, gusset, cuff, wrist closure, pocket, zipper, hood, and carried equipment. Show overlaps, seam allowances, matching points, clearances, and parts that must remain free. Identify operations that must occur before lining, insulation, binding, cuffs, or the body close access.
- Part map
- Shoulder, armhole, sleeve head, underarm, elbow, gusset, cuff, lining, insulation, reinforcement, and closures have codes.
- Movement map
- Reach zones, bend zones, stress paths, seam directions, stretch panels, and restricted areas are identified.
- Garment interface
- Body, shoulder, collar, lining, insulation, cuff, openings, pockets, and equipment are coordinated.
3. Control sleeve patterns, measurements, ease, and grading
Create controlled patterns and measurement points for shoulder slope, armhole, sleeve-head height, pitch, bicep, elbow, forearm, cuff opening, sleeve length, back-sleeve length, underarm length, gusset, articulated panel, and other product-relevant dimensions. State whether each value is measured flat, along seam, bent, relaxed, stretched, worn, or in an approved movement position. Define grain or stretch direction, allowances, notches, balance marks, elbow shaping, and matching points.
Set ease between body, armhole, sleeve, underlayers, lining, insulation, and cuff. Define how length, circumference, pitch, elbow articulation, gusset, cuff, and closure positions change across sizes. Review smallest and largest represented sizes and record exceptions rather than letting component availability determine the grade.
- Measurements
- Armhole, sleeve head, pitch, bicep, elbow, forearm, wrist, cuff, length, gusset, and panel references are defined.
- Pattern data
- Piece codes, direction, allowances, notches, balance, shaping, darts, gussets, and cut quantities are controlled.
- Grade
- Length, circumference, pitch, articulation, gusset, cuff, closure, and size-group rules are reviewed across sizes.
4. Approve sleeve materials and components
Identify shell, contrast, stretch panel, lining, mesh, insulation, membrane or coating, interlining, reinforcement, facing, binding, tape, thread, cuff, elastic, rib, zipper, snaps, hook-and-loop, tabs, and other components by controlled code. Record construction, weight or thickness basis, face, color, finish, stretch, recovery, shrinkage, direction, dimensions, care, and approved swatch or assembly.
Review the complete package for drape, stretch mismatch, recovery, bulk, abrasion, snagging, seam impression, noise, heat response, compression, moisture direction, color migration, skin contact, cuff pressure, closure clearance, and compatibility with pressing, washing, decoration, sealing, or finishing. Substitutions require written review against the represented sleeve assembly.
- Material identity
- Shell, lining, mesh, insulation, membrane, stretch panel, reinforcement, cuff, closure, tape, and thread are controlled.
- Direction
- Grain, stretch, recovery, face, nap, panel orientation, left-right pairing, and cut direction are explicit.
- Compatibility
- Drape, stretch, bulk, abrasion, heat, color, skin, care, decoration, sealing, and finish are reviewed together.
5. Define construction, articulation, and sequence
Specify shoulder and armhole seams, sleeve head, underarm seam, elbow shaping, articulated panels, gusset insertion, reinforcement, lining and insulation control, cuff, opening, placket, closure, binding, topstitching, seam tape, thread, allowances, and approved appearance. Define where easing is distributed, which zones may stretch, and which seams or edges must not be distorted. An articulated seam should follow the approved pattern and movement route rather than become a decorative line without fit evidence.
Document the sequence with shoulder assembly, body seams, pockets, zippers, decoration, labels, lining, insulation, cuffs, closures, sealing, binding, turning, and final closing. Preserve access for gusset, elbow, cuff, and sleeve operations. Prevent trapped lining, twisted sleeves, mismatched left-right panels, compressed insulation, blocked cuffs, punctured membranes, uneven openings, or inaccessible repairs.
- Construction
- Shoulder, armhole, head, underarm, elbow, gusset, cuff, opening, lining, insulation, reinforcement, and closures are specified.

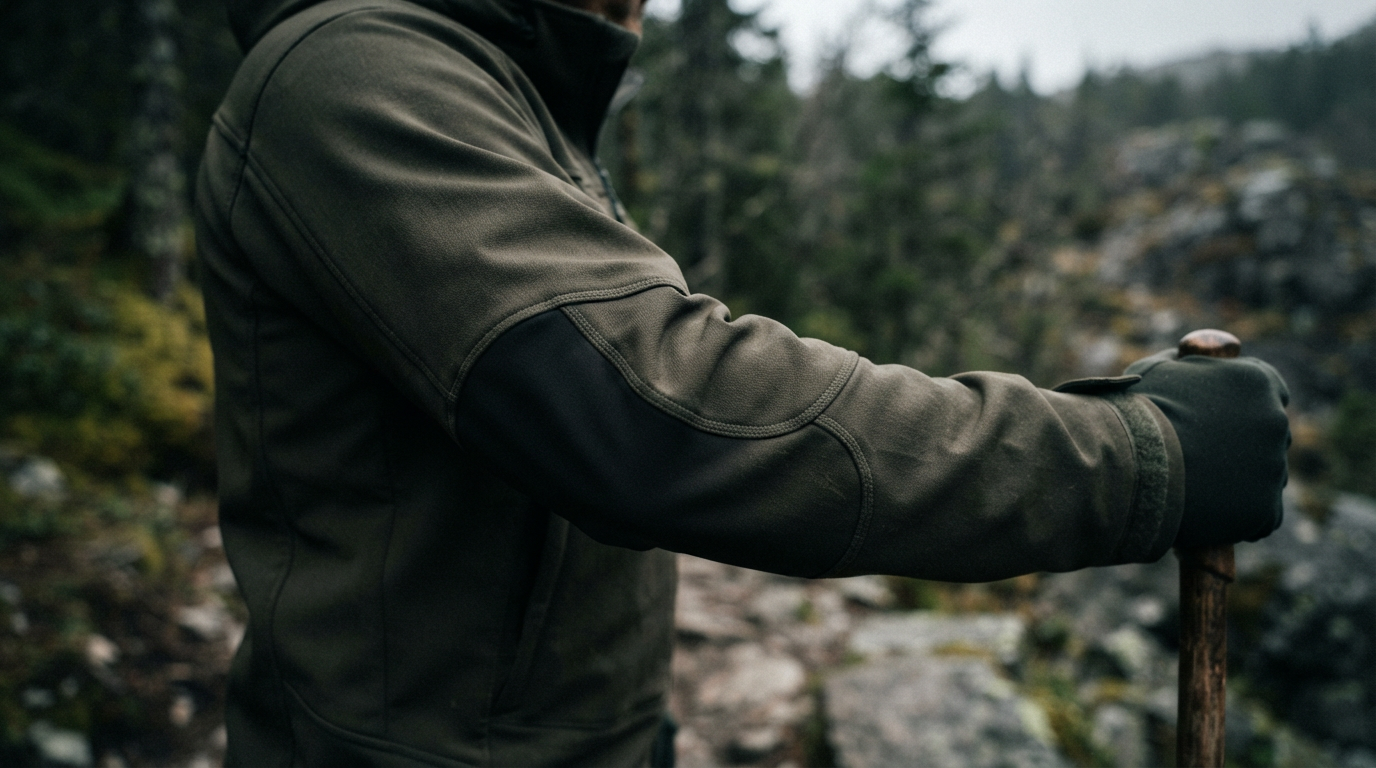

- Articulation
- Panel shape, seam direction, shaping, bend point, stretch zone, clearance, and matching points are controlled.
- Sequence
- Body, pockets, closures, decoration, lining, insulation, cuff, sealing, binding, turning, and closing are coordinated.
6. Review fit, mobility, comfort, and appearance
Fit the sleeve with every approved layer and cuff state. Review neutral posture, forward reach, overhead reach, full arm rotation, elbow bend, shoulder movement, carrying, walking, seated use, and other product-relevant actions. Check armhole pressure, sleeve pitch, body lift, hem rise, back pull, underarm restriction, cuff movement, wrist coverage, pocket access, closure operation, and whether the garment returns to position after movement.
Inspect inside and outside in relaxed, raised, bent, open, and closed states. Review balance, left-right symmetry, sleeve twist, elbow position, seam direction, panel alignment, puckering, roping, lining roll, insulation migration, cuff shape, opening size, closure position, pressure, abrasion, snagging, and appearance. Record sleeve and affected body measurements in the approved condition.
- Movement
- Reach, lift, rotation, bend, shoulder motion, carry, sit, body lift, cuff movement, and recovery are reviewed.
- Fit interfaces
- Shoulder, armhole, body, layers, pockets, cuffs, closures, lining, insulation, and equipment remain compatible.
- Appearance
- Balance, symmetry, twist, sleeve shape, elbow, seams, panels, lining, insulation, cuff, closure, and surface are reviewed.
7. Agree tests, defect limits, and repair rules
Define each required material, component, assembly, or garment evaluation with purpose, method or buyer protocol, specimen, zone, preparation, layer condition, movement or closure state, cycles or exposure, equipment, unit, target, tolerance, quantity, responsible party, report, and approver. Relevant checks may address dimensional change, stretch and recovery, seam behavior, cuff operation, attachment, abrasion, care, or material response where the brief requires it.
Write defect and repair limits for wrong pitch, tight or loose armhole, twisted sleeve, unequal length, poor elbow location, uneven panels, puckering, roping, stretched seams, damaged support, lining roll, insulation migration, incorrect cuff, closure misalignment, skipped stitches, pressure, stains, and appearance. Define permitted opening, replacement route, remeasurement, refit, retest, and approval authority.
- Test definition
- Purpose, method, specimen, condition, movement, cycles, equipment, unit, target, tolerance, report, and approver are named.
- Defect standard
- Pitch, armhole, ease, length, twist, articulation, seam, lining, insulation, cuff, closure, comfort, and appearance have limits.
- Repair route
- Eligibility, opening, part replacement, resewing, pressing, closing, remeasurement, refit, retest, and appearance are controlled.
8. Release the approved sleeve and armhole system to bulk
Issue one current package containing the product and movement brief, sleeve map, materials and components, approved swatches and assemblies, patterns, grade and measurement rules, articulation and cuff details, construction and sequence, fit comments, workmanship limits, tests and reports, repair rules, approved fit sample, accepted alternatives, exceptions, approvers, recipients, and effective date. Remove superseded patterns, components, comments, and samples from active use.
Verify the first production piece for each represented sleeve type, material combination, stretch or support package, cuff configuration, size group, and high-risk interface before broader line continuation. Check identity, lots, cutting, pattern direction, seam assembly, articulation, gusset, lining, insulation, cuffs, operation, fit, movement, measurements, appearance, tests, repairs, and records. Revalidate substitutions, new lots, revised patterns or sizes, machine or sequence changes, later orders, and components held beyond their approved condition.
- Release pack
- Brief, map, materials, components, patterns, grades, articulation, construction, fit, tests, and approved sample agree.
- First-piece gate
- Each sleeve type, material combination, support package, cuff configuration, size group, and critical interface is verified.
- Bulk control
- Lots, cutting, direction, construction, cuff, movement, inspection, tests, repairs, and holds remain traceable.
